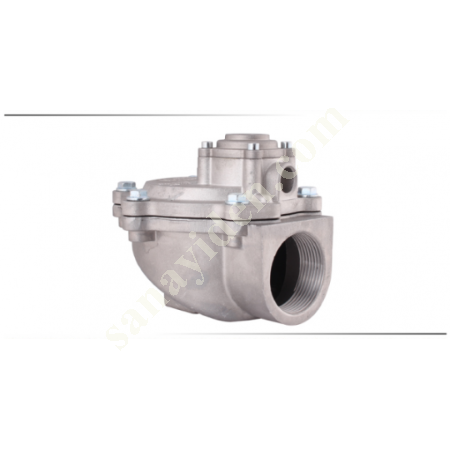

DURAVIS EPV 110 Series Pulse Valves (1 1/2"- Threaded Remote Control) Applications: Air Bag Filter, Bunker, Cement, Powder Coating etc. Way : 2/2 way Position: Normally Closed Body : Aluminum Sleeve : Stainless Steel Coil : No Explanation: DURAVIS EPV 110 Series Pulse Valves are generally used to transfer the particles accumulated in paint, cement, sand, dust collection systems, filter systems and lines used in these systems by working periodically.DURAVIS EPV 110 Series Remote Controlled/Air Controlled Pulse Valves They are produced as single diaphragm or double diaphragm. Pulse solenoid valves with 3/4" and 1" connection size are single diaphragm. Pulse solenoid valves with large connection size such as 1 1/2" are double diaphragm. Double diaphragm valves are advantageous in terms of operation compared to single diaphragm valves. Inlet and outlet connections of DURAVIS Pulse Solenoid Valves form an angle of 90 degrees. It has the feature of sending compressed air in the form of blow (shock). For this reason, these valves only work with compressed air and give this air pulse in a very short time. EPV 110 series valves are air operated, there is no coil on them. DURAVIS Pulse valves; It is a normally closed valve and shocking takes place by giving an average of 100 ms energy. The shocking interval is set by the user. In EPV 110 Series coilless pulse valves, the coil is not mounted on the body. Assemblies made by separating the coil part from the body are rather to better protect the coil against water, dust or any fluid. In such installations, the electrical equipment is mounted further away from the valve body. In addition, the time relay is controlled by the solenoid valves in the remote control box. Model No / Order Coding: Model Size Road Voltage Min Pressure (bar) Max Pressure (bar) Min Temperature (C) Max Temperature (C) Sealing Approximate Weight (Kg) EPV 110-07 1 1/2" (DN40) 2/ 2 Without 0.35 8.5 -40 +80 TPE 1 EPV 110-07N 1 1/2" (DN40) 2/2 Without 0.35 8.5 -20 +130 Neoprene + PTFE 1.3 Technical Specifications (DURAVIS Remote Operated Coilless Pulse Valves EPV 110, 1 1/2") Brand: DURAVIS Application: Dust Collection Systems Size: 1 1/2" BSP (Option: NPT) Pressure: 0.35 bar...8.5 bar Sleeve, Core: Stainless Steel Body: Aluminum Diaphragm: TPE and/or Neoprene+PTFE Temperature: -40°C…+80°C or -40°C…+130°C Position: Normally Closed Protection Class: IP65 Usage Area: Dust collector applications, especially reverse pulse jet filter cleaning and bag filters, cartridge filters, cassette filters, ceramic filters and sintered metal fiber filters, cement industry, ceramic industry, petrochemical industry, feed industry, sandblasting machines, energy and power plants, concrete plants etc. solenoid valve prices,
