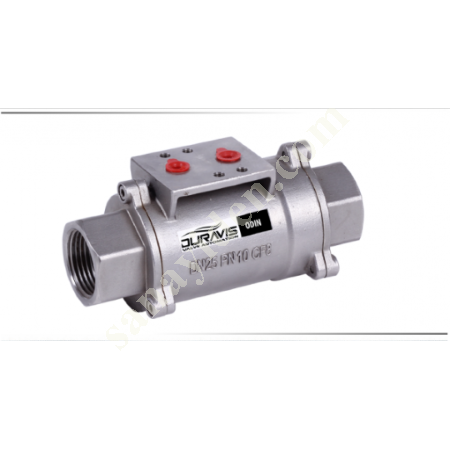

DURAVIS ODIN 201 Series Pneumatic Axial Valves (Economic Series) Application: Steam and Hot Water(E), Oil, Grease, Fuel(V) Fluid Pressure: 16 bar Control Pressure: 3 – 8 bar Air Body Mlz. : AISI 304/316 Sealing Material: EPDM / FKM Fluid Temp.: -20°C…+150°C Control : N.K./N.A. & Ç.E/T.E Connection : Threaded BSP Description: DURAVIS ODIN 201 Series pneumatic axial valves provide fluid control with the back and forth movement of the piston moving in the same axis with the help of air inside the valve. At the end of the stroke, the piston stops the flow or allows the fluid to pass by pressing the seal seat or separating the seal seat. In DURAVIS axial flow valves; There is minimum pressure loss while providing full passage. It is an economical flow control valve considering the total usage time in applications with frequent opening and closing. Model No / Order Coding: Model Size Position Control Connection Sealing ODIN 201-08G-2V DN 8 Normally Closed Single Acting BSP Female Thread VITON ODIN 201-10G-2V DN 10 Normally Closed Single Acting BSP Female Thread VITON ODIN 201-15G-2V DN 15 Normally Closed Single Acting BSP Female Thread VITON ODIN 201-20G-2V DN 20 Normally Closed Single Acting BSP Female Thread VITON ODIN 201-25G-2V DN 25 Normally Closed Single Acting BSP Female Thread VITON ODIN 201-32G-2V DN 32 Normally Closed Single Acting BSP Female Threaded VITON ODIN 201-40G-2V DN 40 Normally Closed Single Acting BSP Female Threaded VITON ODIN 201-50G-2V DN 50 Normally Closed Single Acting BSP Female Threaded VITON ODIN 201-08G-3V DN 8 Normally Closed Double Acting BSP Female Threaded VITON ODIN 201-10G-3V DN 10 Normally Closed Double Acting BSP Female Threaded VITON ODIN 201-15G-3V DN 15 Normally Closed Double Acting BSP Female Threaded VITON ODIN 201-20G-3V DN 20 Normally Closed Double Acting BSP Female Threaded VITON ODIN 201-25G-3V DN 25 Normally Closed Double Acting BSP Female Threaded VITON ODIN 201- 32G-3V DN 32 Normally Closed Double Acting BSP Female Thread VITON ODIN 201-40G-3V DN 40 Normally Closed Double Acting BSP Female Thread VITON ODIN 201-50G-3V DN 50 Normally Closed Double Acting BSP Female Thread VITON Technical Specifications: Supply Pressure : 3 - 8 bar (43.5 - 116 psi) | Control Fluid: Filtered Air Control Type: Double Acting or Spring Return (Single Acting) | Position: Normally Closed or Normally Open Fluid Pressure: 16 bar (232 psi) | Fluid Temperature Range: -20°C …+150°C (VITON O-Ring) Body: AISI 304 / 316 (CF8 / CF8M) Connection: BSP Threaded (On Request: NPT Threaded) Sealing: VITON (Optional; EPDM) Advantages: • Compact Structure, Stainless Steel Body, Mounting in All Directions | • Quick On-Off | • Withstand Vacuum • Fast Response, High Flow Transition | • Low Pressure Loss Usage Area: Filling Machines, Textile Printing & Dyeing, Medical Equipment, Rubber Machinery, Chemical Industry, Water/Wastewater Discharge etc.
