EXTRON / EXTRON CNC L1320

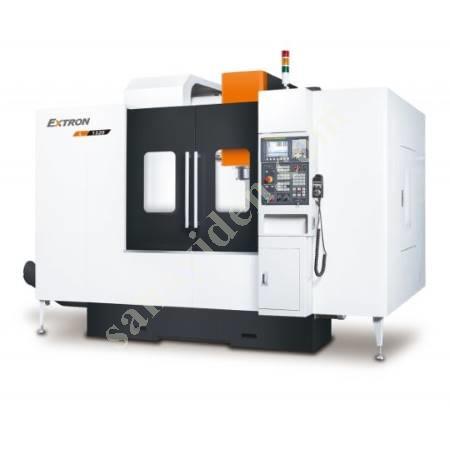

EXTRON CNC L1320 ROLL TYPE LINEAR BEARING VERTICAL MACHINING CENTERS WITH FANUC 0i-MF OR MITSUBISHI M80A CONTROL UNIT OPTIONS L1320/40 L1320/50 MOVEMENTS: X-Axis movement mm 1320 Y-axis movement 700 mm between forehead~work table mm 130-830 95-795 Between spindle axis~column mm 782 WORK TABLE: Work table size mm 1520x700 T-Channels (Dimension x Piece x Spacing) mm 18x5x145 Work table load capacity kg 1500 SPINDLE: Work spindle taper #40 #50 Spindle speed rpm 10000 [15000] 8000 Spindle motor power (30 min/continuous) kW 15/11 18.5/15 [22/18.5] AXES: X/Y/ Z axes rapid traverse speeds mt/min 36/36/30 X/Y/Z axes maximum cutting speed mt/min 10 X/Y/Z axes ball screw diameter x pitch mm Ø40x8 / Ø40x8 / Ø40x6 X/Y/Z axis motor powers (for Fanuc) kW 4/4/4 X/Y/Z axis motor powers (for Mitsubishi) kW 3,5/3.5/3,5 TOOL MAGAZINE: Tool magazine type Handle type Number of tool stations Quantity 24 [30] 24 [30 /40] Tool shank type BT-40 BT-50 Max. tool diameter mm Ø80 Ø125 Max. tool diameter (Neighboring stations are empty) mm Ø150 Ø150 Max. tool length mm 300 300 Max. tool weight kg 7 15 PRECISIONS: Positioning accuracy (JIS B 6338) mm ± 0.010 Repeating accuracy throughout the entire axis movement (JIS B 6338) mm ± 0.003 GENERAL: Power demand kVA 42 48 Compressed air requirement Bar 5~8 DIMENSIONS: Width (Chips) without conveyor) mm 3360 Depth mm 2875 Height mm 2970 Bench weight kg 8500
