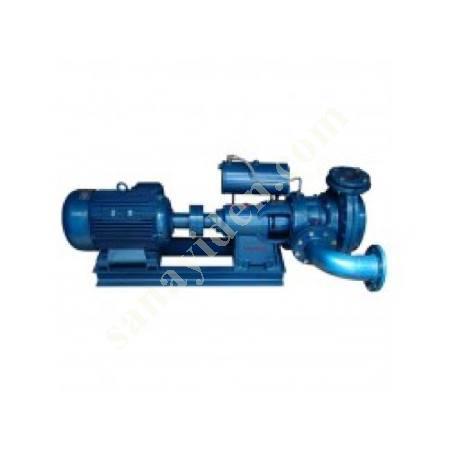

FILTER PRESS PUMPS FP 72

Share FP 72 Pump Model : FP 72 FILTER PRESS PUMP Inlet / Outlet Flange Diameter : 4'' - 3'' Number of Stages : 1 Manometric Head : 50- 80 m Flow Rate : 8 - 60 m³/h Engine Power : 15-30 HP 1400 d/d 2800 d/d Sealing Type: Double mechanical seal and seal cooling system Body Material: GG 18-22 cast iron (Polyurethane coated) Shaft Material: CK 45 chrome plated steel Fan Material: GS 50 steel casting (Polyurethane coated) optional) FP 72 FILTER PRESS MUD PUMP: Q = 16-32 m³/h Hm= 76-70 mSS (7-7,5 bar) P =15-18.5 kW 1450-2900 rpm Input-Output: 4'' - 3'' FP 72 Filter Press Pumps are designed to press marble sludge under high pressure into filter presses that separate the marble sludge from the water in the treatment plants in marble and stone cutting factories and turn it into cakes. The surfaces that come into contact with the abrasive solids in the marble mud are covered with wear-resistant polyurethane material. The fan has open blades and there is no clogging problem. Pump electric motor is double speed (1450-2900 rpm). After filling the filter press at low speed, it provides full compression at high speed. It has double mechanical seal and cooling system.
