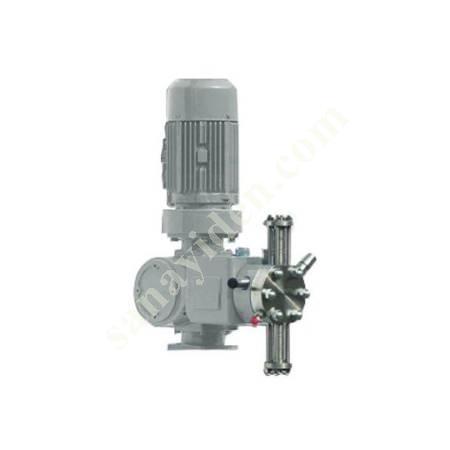

HYDRAULIC DOUBLE DIAPHRAGM METERING PUMP

HYDRAULIC DOUBLE DIAPHRAGM METERING PUMP THE IDEAL SOLUTION FOR APPLICATIONS REQUIRING HIGH LEVELS OF OPERATIONAL SAFETY AND RELIABILITY A Line Hydraulic Double Diaphragm Metering Pumps designed according to the API 675 Standards. Their possibility of construction with various materials allows these metering pumps to satisfy every liquid dosing and mixing application. Furthermore, their complete compliance with the ATEX Standards even allows for hese pumps to be installed in hazardous areas APPLICATIONS Water Treatment and Industrial Sector Municipalities, Wastewater, Chemical, Food & Beverages, Detergent, Power Generation, Environment, Petrochemical, Pharmaceutical, Paper, Texile MECHANISM OF A MECHANICAL RETURN TYPOLOGY AND AVAILABLE IN VARIOUS SIZES Internal worm gearbox, oil bath lubrificated with low noise emission Rotating parts on bearings to minimise power consuption High precision stroke adjustment, both manual and by means of an electric actuator Accuracy within ±1% FLOW RATE up to 1200 l/h with a single head PRESSURE upto 40 barg TEMPERATURE ambient 10÷40°C fluid 5÷50°C CONTACT MATERIALS SS316L, PP, PVDF
