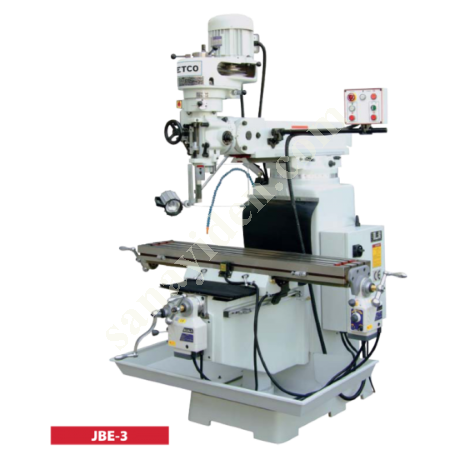

JBE-3 Technical specifications Unit JBE-3 Table size mm 254 x 1270 T. groove mm mm 16 x 3 x 63 X axis travel of table mm 825 (manual: 914) Y axis travel of table mm 400 Z axis travel of table mm 406 Head up/down travel mm 610 Spindle pinole travel mm 127 Pinole diameter mm 85.72 Motor HP 3 Spindle taper ISO40 Speed change 16 step speed Spindle speed rpm 80-5440 Head rotation angle Right/Left 90° - Front/Rear 45° Net weight kg 1200
