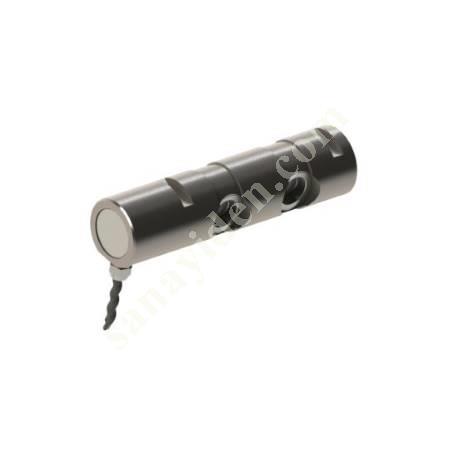

LPC PIN TYPE LOAD CELL

LPC Pin Type Load Cell LPC is a pin type cylindrical high precision load cell that can measure from 4 points. It is used in cranes and mobile weighing applications. It can be produced in desired dimensions and capacities. Standard mV/V signal output, 4-20mA and 0-10V Analog and RS485 Digital output options. Applications – Crane overload systems – Mobile weighing applications Technical info Capacity : From 2 Tons to 60 Tons Accuracy Class : – Minimum Load : 0 kg Maximum Intervals (nLC) : – Minimum Verification Interval : – Total Error : ±0.5 % FS Output Sensitivity (FS) : 1.2 ± 0.2mV/V Zero Balance : ± 1 %FS Input Resistance : 720 Ω ± 20 Ω Output Resistance : 702 Ω ± 5 Ω Isolation Resistance : ≤ 5000 MΩ (100VDC) Compansated Temperature : -10 ° + 40 °C (Option) Operating Temperature : -30° + 70 °C Excitation, Recommended Voltage : 10 VDC Maximum Excitation Voltage (Umax) : 15 VDC Safe Overload : 150 % FS Ultimate Overload : 300 % FS Ingress Protection (EN60529 ) : IP 67 Element Material : Alloy Steel / Stainless Steel Cable : 4x022mm² TECHNICAL SPECIFICATIONS Capacity from 2 Tons to 60 Tons Accuracy Class - Minimum Load 0 kg Maximum Number of Divisions (nLC) - Minimum Measuring Range (Y=Emax / Vmin) ) - Total Error ±0.05 %FS Output Gain (FS) 1.2 ± 0.2mV/V Zero Balance ± 1 %FS Input Resistance 720 Ω ± 20 Ω Output Resistance 702 Ω ± 5 Ω Insulation Resistance ≤ 5000 MΩ (100VDC) Compensated Operating Temperature 10 ˜ + 40 °C Operating Temperature Range -30 ˜ + 70 °C Recommended Excitation Voltage 10 VDC Maximum Excitation Voltage (Umax ) 15 VDC Overload Capacity 150 % FS Breaking Load 300 % FS Protection Class (EN60529) IP 67 Load Cell Material Alloy Steel Cable 4x022mm²
