SP-10 PLATFORM TYPE LOAD CELL SP-10 PLATFORM TYPE LOAD CELL

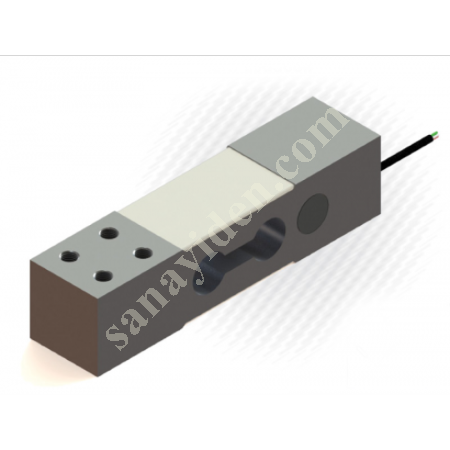

SP-10 Platform Type Load Cell Product Code: SP-10 - S Availability: In Stock Description SP10 model load cells can be used in applications requiring high precision. Low profile structure and low cost are another advantage. Various capacity options from 300 Kg to 850 Kg Special alloy aluminum IP66 class water and salt protection High sensitivity Anodized aluminum Technical Specifications – Sensitivity Class C3 Output Sensitivity mV/V 2.0 ± 0.02 ( FSO ) Capacity Ton 300,500,650,850 Total Error %FS ± 0.020 Creep %FS ± 0.020 Zero Balance %FS ± 1 Input Resistance Ω 410 ± 20 Output Resistance Ω 350 ± 3 Insulation Resistance MΩ ≥ 5000 Compensated temperature range °C -10 ~ +40 Operating Temperature °C -35 ~ +65 Recommended supply voltage V ( DC ) 5 ~ 12 Maximum supply voltage V ( DC ) 15 Minimum Load t 0 Overload Capacity %FS 150 Breakage Capacity %FS 200 Material Aluminum Protection Class IP66 Cable Length 3 m, dia. 5mm Max. Platform dimensions mm 800 x 900
