TÜRKİYE / BURSA
The HC-2T/12M model is a crane system that stands out with its high lifting capacity and durability. It is equipped with important safety features such as conical motor brake, emergency stop function control and safety switches. It offers reliable and effective performance in various industrial applications.

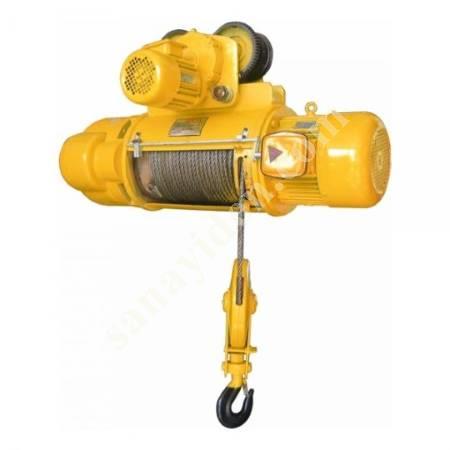

Product Name: HC-2T/12M Conical Motor Crane
Recommendation: Before installing the machine, it is recommended to have an external electrical panel with current and phase protection suitable for its capacity.
Technical Specifications:
Capacity: 2 Ton
Lifting Height: 12 m
Lifting Speed: 8 m/min
Carriage Speed: 20 m/min
Rope Diameter: 11 mm
Total Rope Length: 27.4 m
Rope Structure: D-6 x 37+1
Rail Type: GB 706-ss 20a-32c
Minimum Radius of Rail: 1.5 m
Lifting Motor Type: ZD1 31-4
Lifting Motor Capacity: 3 kW
Lifting Motor Speed: 1380 rpm
Lifting Motor Voltage: 380V - 3 Phase
Lifting Motor Current: 7.6 A
Carriage Motor Type: ZDY1 12-4
Carriage Motor Capacity: 0.4 kW
Carriage Motor Speed: 1380 rpm
Carriage Motor Voltage: 380V - 3 Phase
Carriage Motor Current: 1.25 A
Connection Speed: 120 s/h
Weight: 285 kg
Working Ratio: 25%
Features and Safety:
Conical motor brake
Emergency stop function remote control
Safety switches
Contact and Information:
You can contact us for more information about HC-2T/12M crane and solutions that suit your needs.
