Ad Details Technical Specifications

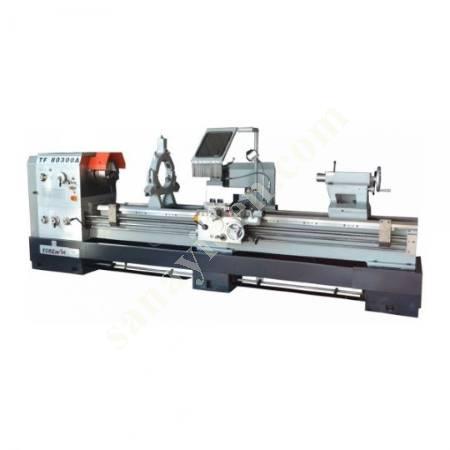

TF80300A Universal Lathe Product Features Standard Equipment - Full Norton Transmission - Gearbox with Clutch - Cast Body - Moving Lunet - Fixed Lunet Standard Accessories - 3-Legged Mirror - 4-Legged Mirror (with Shutter) - Plate Mirror - Cooling Water Hardware - Lighting Lamp - Sleeve - Fixed Tailstock - Leveling Plate and Bolts - Equipment Technical Specifications Diameter on the Benchmm800 Diameter on the Trolleymm560 Diameter in the Bridge Spacemm1000 Bench Widthmm510 Distance Between Centersmm3000 Spindle Hole Diameterm105 Spindle Conicmetric113 Spindle Speed Number12 Spindle Speed RangeRev/min30W-1400 Main Motor Power Advance Rangemm/dev0.063-2.52 Transverse Advance Rangemm/rev0.027-1.07 Metric Threadsmm1-14 Inch ThreadsTPI20-2 Module PitchModule0.5-7 Diametric PitchDP56-4 Trolley Transverse Movementimm320 Trolley Top Holder Movementimm145 Opposite Tailstock Pinol Diameterm75 Opposite Tailstock Pinol TaperMT5 Counter Tailstock Pinol Advance Amountm150 Weightkg3700
