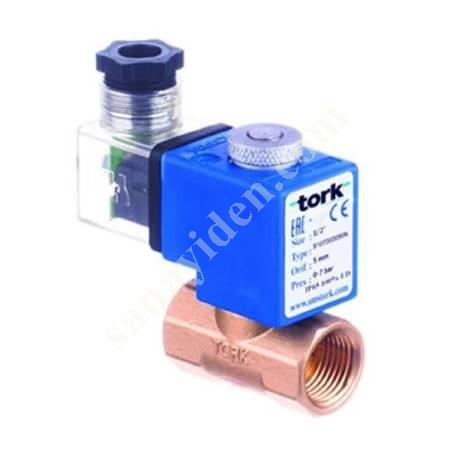

S1040.04(GTD)(ECONOMIC) DIRECT PULL GENERAL PURPOSE

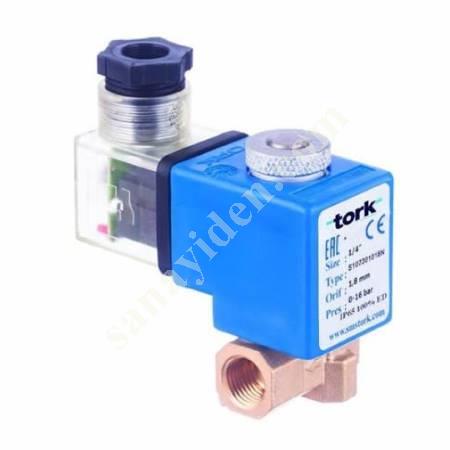

S1073 Series (Economic) Direct Drive General Purpose Normally Closed (Diameter: 3/4" Bar: 0,35-16) Fluid: Air, Water, Gas, etc. GENERAL FEATURES • It has wide pressure range, flow rate and orifice options. • Solenoid valves should be used with a filter • Solenoid valves can be mounted in any position without affecting their operation • Coil should be preferred in vertical up position ELECTRICAL SPECIFICATIONS Continuous Energization : ED 100% Coil Insulation Class : H (180°C)(IEC 85) Coil Coating: Reinforced Fiber Glass Ambient Temperature: -10°C, +60°C Protection Class: IP65 (ISO 60529) On Request; IP68 Socket Connection: DIN 46340 3-pole Socket (DIN43650) Socket Specifications: ISO 4400 / EN 175301- 803 Form A, Terminal (Cable Ø6-8 mm) Electrical Safety : IEC 335 Standard Voltage : AC 12V 15VA, 24V 15VA, 48V 15VA, 110V 15VA, 230V 15VA, 230V 24VA DC 12V 18W, 24V 18W, 48V 18W, 110V 18W Other voltages on request Voltage Tolerance : AC -15%, +10% DC -5%, +10% Frequency : 50 Hz (60 Hz…) PRODUCT MATERIALS Body : Brass Internal Parts : Stainless Steel Diaphragm : NBR Ring : Copper (EN 12735-1) Core, Sleeve, Spring : Stainless Steel, Brass solenoid valve prices,
