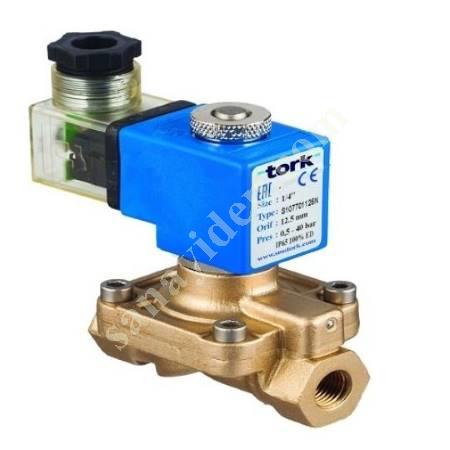

S1078 Series Pilot Operated General Purpose Normally Open (DIA: 1/4"- BAR:0.5-40) PRODUCT INFORMATION 0.5....40 bar pressure, 1/8"...1/4" connection and 12mm orifice, pilot controlled Application: Air, Water, Gas, (it is recommended to put a filter at the valve inlet for dirty fluids) Size: 1/8", 1/4" Pilot Operated, BSP (NPT on Request) Pressure: 0.5…40 Bar Sleeve , Core : Stainless Body : Brass Diaphragm : NBR, EPDM or VITON upon request Temperature : -10°C…80 °C Position : S1077 Normally Closed S1078 Normally Open Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC Protection Class : IP65 ( optional Exproof ) Body: Brass / Sleeve: Stainless Diaphragm: NBR/-10...80 Fluid: Air, Water, Gas etc. solenoid valve prices,
