Ad Details Technical Specifications

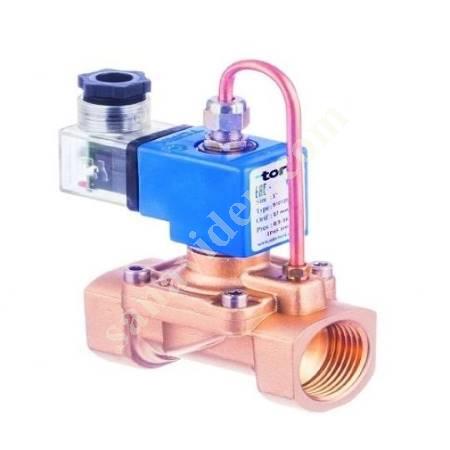

S4014 Series Fuel Solenoid Valve (High Pressure) (DIA:3/8"-BAR:0.5-40) PRODUCT DESCRIPTION S4014 SERIES (TORK-YHA) HIGH PRESSURE NORMALLY OPEN FUEL SOLENOID VALVE Application: Fuel oil, diesel oil, hydraulic oil, burners (It is recommended to put a filter at the valve inlet for dirty fluids) Size: 3/8"…1" Pilot Operated, BSP (NPT on Request) Pressure: 0.5…40Bar Sleeve, Core: Stainless Body: Brass Diaphragm: VITON / PTFE + VITON Temperature : -10°C…160 °C Position : Normally Open Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC Protection Class : IP65 ( optional Exproof ) fuel high pressure solenoid valve prices,
