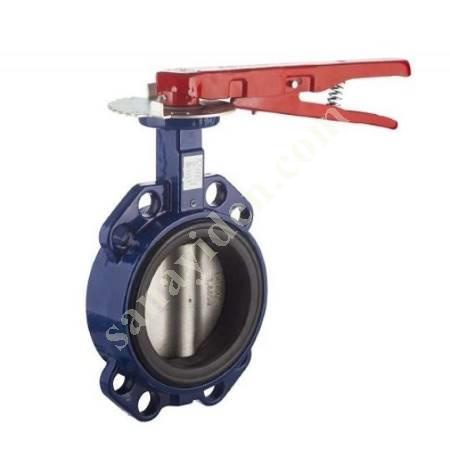

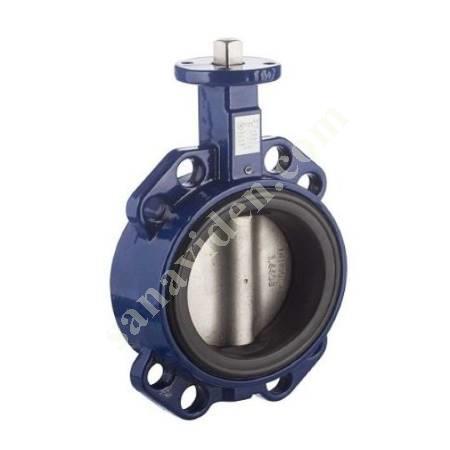

TORK-KV.W121.200 EPDM SEAL WAFER TYPE BUTTERFLY VALVE (DIA: DN200) PRODUCT FEATURES Body : GG 25 Gray cast iron, epoxy coated (121 series) Cap : GGG50 Nodular cast iron coated with rilsan or 304, 316 stainless steel (specify in the order) Gasket : EPDM (-30...130 C degree), or NBR (-30...90 C degree) (specify in order) C.Pressure: It is designed for low pressure and high pressure. 10 bar (16 bar on request) C. Temperature: EPDM (-30...130 C degrees), or NBR (-30....90 C degrees), specify gasket type when ordering Shaft: AISI 420 stainless Control: Hand-controlled automatic control with gearbox and actuators TECHNICAL SPECIFICATIONS Model: TORK-KV.W 121 Working Pressure: 10 Bar Temperature: -30..130 C Gasket: EPDM One-piece body, economical series products. wafer type butterfly valve prices, butterfly valve prices, lug type butterfly valve prices,
