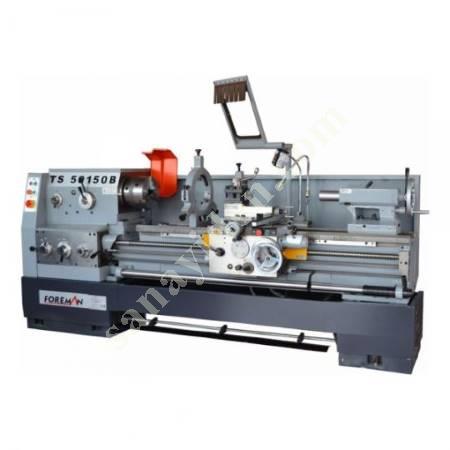

TS50150B UNIVERSAL LATHE

The ad is published in different categories. Ad content or information is incorrect. The specified ad / service has been rented or sold before. Other

E-mail Address

GSM

Subject

Message

Security Code

SEZGİNLER MAKİNA SAN TİC. AŞ.

3 Year

TÜRKİYE / BURSA

Store Page

Ad Details Technical Specifications

TS50150B Universal Lathe Product Features Standard Equipment - Full Norton Gearbox - Gearbox with Clutch - Cast Body - Moving Lunet - Fixed Lunet Standard Accessories - 3-Legged Mirror (250 mm) - 4-Legged Mirror (400 mm Shutter) - Plate Mirror - Cooling Water Equipment - Lighting Lamp - Sleeve - Fixed Tailstock Tip - Leveling Plate and Bolts - Equipment Technical Specifications Diameter on Benchmm500 Diameter on Trolleymm300 Diameter in Bridge Spacemm710 Width of Benchmm390 Distance Between Centersmm1500 Spindle Hole Diameter82 Spindle Taper113 Spindle Speed Number24 Spindle Speed Range9-1600 Main Motor PowerW7.5 Longitudinal Advance Rangemm/rev0.028-6.43 Transverse Advance Rangemm/rev0.012-2.73 Metric Threadsmm0.5-225 Inch ThreadsTPI72-1/4 Module PitchModule0.5-7 Diametric PitchDP56-4 Trolley Transverse Travelimm320 Car Top Pen Holder Movementimm145 Counterpoint Pinol Diameterm75 Counterpoint Pinol TaperMT5 Counterpoint Pinol Advance Quantitym150 Weightkg2300 Machine Dimensionscm330x115x188
