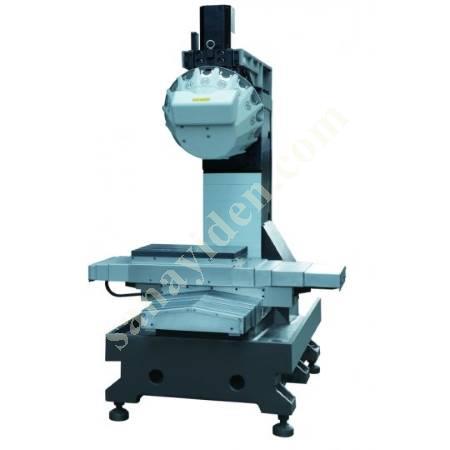

Z540 DRILL GUIDE PULL CENTER Unit Z540 Work table size mm 600 x 400 Work table load capacity kg 250 T-Channels (Dimension x Piece x Spacing) mm 14x3x100 X axis travel mm 500 Y axis travel mm 400 Z axis travel mm 300 Spindle face-work table surface mm 155-455 Spindle axis-column distance mm 465 X/Y/Z axes serial (idle) travel speeds mt/min 48/48/48 Spindle taper BT30 Spindle release form Direct release Spindle speed r/min 12000 Spindle motor power kW 3.7 Tool magazine type Turret type Number of tool magazine stations 16 [Ops. 20] Maximum tool weight kg 3 Tool change time Seconds 2 Dimensions mm 1900x2100x2500 Weight kg 2300
