2 KW PIPE PROFILE LASER MACHINE ZENGİBA

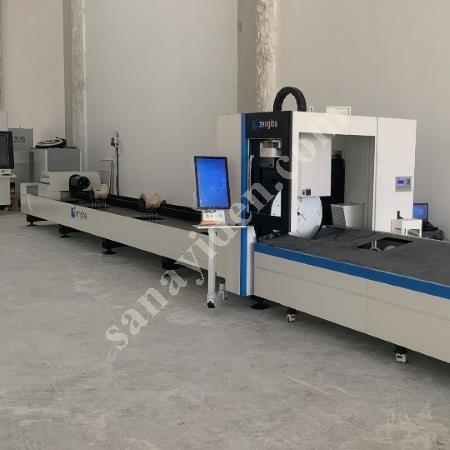

PIPE PROFILE LASER CUTTING MACHINE 2 KW 6 M.


Türkiye CUSTOMS DELIVERY. INSTALLATION AND TRAINING INCLUDED - CUSTOMS DELIVERY FOR VAT EXEMPTION. CUSTOMS DUTY 17% AND OTHER EXPENSES ARE EXCLUDED. THERE IS NO CUSTOMS TAX IF IT IS INCENTIVE.

AFTER SALES SERVICE AND WARRANTY BELONGS TO OUR COMPANY.

   IT IS A SPECIAL CONFIGURATION WITH OUR ZENGIBA BRAND.

MAX 2 KW Fscut 3000S controller 6M length, 20-350mm pipe diameter cutting ability Raytool BM111 Auto-focusing laser cutting head Both full-time pneumatic chucks of full-case type. Available for cutting 20-350mm Diameter round/square/rectangular tubes

  A. The machine base adopts high-strength rectangular tube and steel plate welding, and through secondary aging treatment, Italian GOLGAR milling machine (Jinan FIN machining center) precision machining to ensure the stability and accuracy of machine tool operation.

  B. Plate welded cantilever beam, ensure good cutting stability Raycus laser has higher electro-optical conversion efficiency (>30%), higher and more stable optical quality, stronger altitude stress resistant capacity, and is more stable and more stable in thick sheet metal cutting It applies optimized second-generation fiber transmission system to ensure sophisticated cutting effect. This machine is applicable to many application scenarios: cutting, welding, perforating, medical device processing, etc., a narrow seam and bright section of cut sheet metal. Compared with the same lasers, it has obvious advantages. Net Aperture: 28mm Fiber laser cutting head (BM111) Collimation protection glass: φ24.9mm * 1.5mm Protecting glass for focus lens: φ27.9mm * 4.1mm Auxiliary Gas Pressure: ≤30bar Pipes on the loader should be placed in order B for single tube loading capacity .Max weight is 100Kgs C. Available loading round, square, rectangular, oval pipes The chuck is a complete sealing design, effectively preventing dust pollution from cutting

  2. Full stroke design, high alignment accuracy

3. Gear transmission, good rigidity and high transmission accuracy; The jaw is designed to be clamped and supported. The chuck rotates the bearing. The jaw connecting mechanism has good sealing and strong anti-pollution ability. 2. Integrated flange treatment, good rust resistance 3. The mirror support base has high strength and better stability

  4. This chuck has hollow design, available to put exhaust column on the rear chuck, when the machine is cutting the last piece close to the rear chuck, it can blow the cutting slag to protect the rear chuck, preventing the slag from coming to the rear chuck.

Fscut 3000S controller with TubePro pipe cutting software is a professional cutting software for processing various types of pipes.

  Perfect and hassle-free with docking software. It realizes part layout, co-edge, basic technology and special technology machining. After exporting the rendering file, you can directly use TubePro to cut. laser focuses on laser pipe cutting machine and offers customers personalized flexible pipe processing system. Quality is life. Lazer has been meticulously controlling the production process for many years. Based on the strict quality management system and quality control team, we repeatedly inspect every stage of laser equipment research and development, supply, production and after-sales to ensure that each device can continuously and permanently create value for users.

  Our company INSTALLED a fiber laser cutting machine for the first time in Bursa in 2006. Our company carried out contract laser cutting works with this machine after 2007. In 2013, it expanded its subcontracting business by purchasing a 4400 w.CO2 laser cutting machine. In 2015, it started the ASSEMBLY (production) of the fiber laser cutting machine. ((BECAUSE LASER MACHINES ARE ASSEMBLED ON A CHASSIS BY PROPPING Selected Parts ALL OVER THE WORLD. THERE IS NO COMPLETE PRODUCTION.)) With years of experience in laser machines, it assembled the first machine in 2016 and exported it. It also produced economical laser machines for manufacturers in the domestic market. In the light of its own experience, the company aimed for small manufacturers to get rid of contract cutting and work with their own laser machines. In order to minimize the failure rate in laser machines, quality materials and devices that also provide service guarantee were preferred.

Company objectives

To reduce the prices of laser cutting machines, which every metal producer needs, to minimum levels. Since subcontracting is the main source of trouble for companies engaged in metal work, to make manufacturers own laser machines instead of subcontracting.

Company principles

To attach importance to after-sales service. To use guaranteed and quality materials. To keep the malfunction rate to a minimum. To determine the most reasonable and economical prices.

1-Our infrastructure has been formed with fiber laser R&D studies and contract cutting experience since 2006. After 2020, we are bringing special configuration with our ZENGİBA brand in our PARTNER FACTORY in China.

2-our basis: Customization of machine construction according to the company-experienced team -

3-configuration-- It will depend on your choice to build on our foundation prepared with the infrastructure we have. You can order a machine from us according to your budget - According to your work - According to the size of your place - According to your demands and requests. Why do we say custom-made, because we do not make STANDARD machines in ready-made garments.

Thanks to our new generation machine chassis design made of durable and strong steel profile, we produce machines with error-free cutting capability.

Model selection will depend on your preferences.

It is now very easy to own laser cutting machines and robot systems.

Everyone should buy a laser cutting machine. Let the manufacturer get rid of subcontracting. Let his business expand. Let robotic systems enter every stage of production.

  - THOUSANDS OF COMPANIES ALL OVER THE WORLD CHOOSE THE PRODUCTS OF THE FOLLOWING BRANDS AND MAKE MACHINES AND THEN PRINT AND SELL THEIR BRAND --- 4 OUT OF TOTAL 20-25 BRANDS IN THE WORLD CREATE THIS MACHINE

   a - LASER GENERATOR REGENATOR---GW-MAX--RAYCUS-JPT-HAN,S--IPG-N-LIGHT b - b-MACHINE SOFTWARE------------- (BOCHİ)FSCUT CYPCUT-SIEMENS- BECKHOFF-POWER AUTOMATION c -ENGINE SELECTION --------------- YASKAWA – PANASONIC- DELTA- LG- MITSUIBISHI d – CUTTING HEAD---------- -----— Special requests in the BOCHİ-PRECİDECT-LAZERMATCH-RAYTOOLS e-program - cutting speed - height adjustment - part placement f- dressing - single table, double table - machine color selection g - machine size selection - 1250x2500 - 1500x3000- 2000x4000 - 2000x6000mm-2500x6000 mm h – ventilation – bottom, top, side – gas automation selections – control panel – foot-panel-small-large- hand control selection etc.

  6 M. LENGTH 200 MM DIAMETER MIRROR ---3000S PROGRAM---BM111 HEAD-- 2000W SOURCE

  Committed to providing professional laser industrial application solutions, we have been focusing on in-depth processing of laser industrial application field for many years.

We mainly supply fiber laser cutting machine including medium power and high power, automatic feeding and lowering profile cutting machine, fiber laser cutting machine for metal sheet and metal profile, automatic loading and unloading laser tube cutting machine, handheld laser welding machine and so on. we do. ZENGİBA fiber laser cutting machine is an advanced product. This series of products is recommended for the metal material processing industry. The bed is a honeycomb carbon structure that has undergone an aging annealing process. ,The working speed of the machine is extremely fast, and the processing efficiency is greatly improved.The cutting head has an automatic tracking system, through capacitive induction control, which ensures that the cutting head is kept at the same distance from the workpiece surface, the distance between the nozzle and the surface of the workpiece can not only cut flat sheet metal, but also concave and the convex surface does not cause problems in sheet metal cutting.

     Fine cutting quality: non-contact cutting, edge cutting is less affected by heat, almost no thermal deformation of the workpiece, collapse occurring can be avoided, almost linear cutting can be finished in one go, and there is no need for rework.

     Save mold investment: It can complete the processing of various complex structures by drawing any image for laser processing on the computer, no mold, no mold consumption, no need to repair the mold, save time to replace the mold, which saves processing cost, reduces the production cost, especially large It is suitable for processing products. Our machine chassis is heavy duty, steel welded, and we have aging vibration process and annealing process. Thus, the machine does not deform during long-term use.
