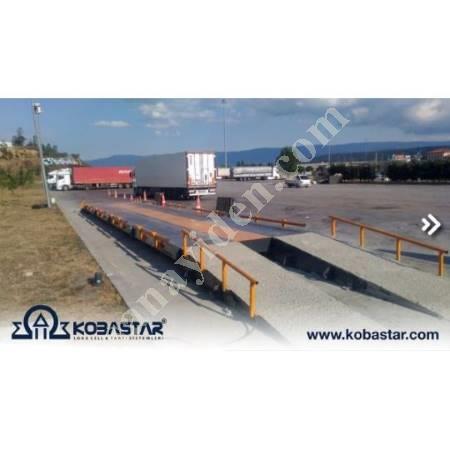

3X16 METERS 60 TON TIR SCALE

FROM FLAT LEVEL ON CONCRETE READY ELECTRONIC TIR SCALE WITH RAMP TURKEY LOADCELL AND ELECTRONIC SCALE MANUFACTURER FULLY DOMESTIC PRODUCTION 3X16 METERS 60-80 TON TIR SCALE Weighing Terminal TS5 The weighing terminal we use in scales has 2014 WI/31/ REU (OIML) certificates and 2014. With its two-stage weighing feature, it allows legally more precise weighing. The 26mm high LCD screen is easy to read with backlight. It has 1/30000 cycle accuracy with 24-bit sigma delta ADC. It is a robust and reliable weighing terminal that makes stable weighing with antivibration filtering software. It is the style of the system in bridges and viaducts that has been converted into a weighbridge. There is minimal infrastructure requirement as the scale comes with ramps. It is mounted on the floor, the mechanical installation is completed within 1 hour. Weighbridge Program that can be easily moved to another area at any time Kobastar scale program is a truck scale software that enables easy management of weighing operations. With its powerful database, it has data sending and reporting functions in xml, excel, pdf, html, txt formats. Up to 3 copies can be printed from receipt dot matrix printers, which can be designed in the desired format. Provides remote monitoring with optional web-based database. Light management and license plate reading systems can be easily integrated. Load Cells The load cells used in the Ts5 model are OIML R60 C4 certified pressure type with a capacity of 30 tons. With its stainless steel body and IP68 protection, it is extremely resistant to adverse environmental conditions and corrosion. It prevents incorrect weighing by providing protection from lateral loads with standard mounting kits. Optionally, KOBASTAR TSD model OIML R60 C5 certified digital load cells are also used. Why choose Kobastar Load Cell? Kobastar manufactures load cells using high quality special alloy steels and aluminum materials to ensure that your weighing applications are reliable, robust and accurate. Food, Chemistry etc. We use Stainless steel materials for industrial hygienic environments. You can use load cells in protection class that we produce for washable or humid environments. Alloyed steel models are hardened by heat treatment and cleaned by sandblasting, and all surfaces are coated with Nickel homogeneously and become more resistant to corrosion. Aluminum Load Cell models are hard anodized to be resistant to corrosion. All Loadcells are tested in accordance with the test procedures specified in their recommendations. Standard 4×022, 4×050, 6x022mm2 PVC flame retardant outer sheath, Aluminum and tinned copper braided shielded cables are used in our products, providing protection against external noises and signals. Optionally, armored or ex-proof silicone cables can be preferred. Armored cables are more resistant to external factors and provide protection from rodents such as mice. Silicone cables, on the other hand, create an excellent heat shield in high-temperature working environments, can be used at a continuous temperature of 180°C and for a short time up to 220°C. Silicone cables are used in both high and low temperatures down to -60°C, thanks to their excellent climate resistance. Kobastar Load Cells are tested in -10C°~+40C° climate cabinets during the production phase and operate in all climatic conditions from Siberia to Equator without losing their calibration. Linearity, Creep and mV/V tests are performed at full capacity on each load cell dead weight or hydraulic force testing machine. KOBASTAR LOAD CELL manufactures and sells all products in its factory located in Konya with the assurance of 100% Turkish goods. We can make OEM production in case of certain quantities on order basis. KOBASTAR, the global brand of Load Cell and Weighing Industry. LOAD CELL In fields such as industry, logistics and mining, it is necessary to measure weight in a qualified manner in order to get fast results in the production and supply stages. The most reliable systems for weight measurement are load cell systems, also known as load cells. The different types of cells allow the weight of objects to be measured quickly and to obtain accurate results. What is a Load Cell? The history of Load Cell Weighing systems goes back thousands of years. As a matter of fact, weight measurement has always been an area of ​​need. Different methods were used to measure the weights of the objects. Systems measuring with pressure give faster, more accurate and reliable results than others. Weighing systems known as mainspring scales are examples of these measuring devices. Load cell basically has a similar feature to these systems. Objects on the load cell exert a pressure on the surface. This pressure is converted into weight data by electrical systems. This mechanism is the basic working principle of the system known as load cells. Electronic weight systems that measure according to the force and pressure of the objects on them are called this way. There is a great variety of devices in question according to their usage areas and weight limits. How does it work? According to the law of gravity, every object exerts a certain force on the base. Weight is basically the measurement of this force. Objects are heavy in proportion to the force they exert on the surface. Loadcell is basically based on this principle and converts the force exerted by the objects on them to the weight value in kg with the help of electrical circuits. Measurements of load cell devices are made with an electrical diagram known as the Wheatstone Bridge. This system is based on the comparison of pressure values ​​from different cells. Cells located in different parts of the surface convert the pressure exerted by the object into a resistance value. When these resistance values ​​are compared, the average result is accepted as the weight of the object. Loadcell provides fast and accurate results thanks to this working mechanism. What are the Types of Load Cells? Many different systems are included in the load cell category, from electronic scales used for weight measurement in homes to devices that can measure up to 2000 tons. These systems generally vary according to upper and lower weight limits and usage areas. Load cells have some categories in terms of their basic working principle. Platform Type Compression Type Double Blade Type Blade Type Pin Type S Type Bellows Type Overload Control Type Feed Machinery Loadcell Tension Control What Should You Consider When Choosing a Product? A slight inaccuracy in weight measurements can cause serious problems. Therefore, when choosing a load cell, you need to make sure that it gives correct results. The system you have chosen must have been checked. In addition, it is extremely important that the product you choose is suitable for its intended use. For example, you should choose models that can be placed on the belt to meet your weight measurement needs in the mining area. For elevators carrying people and loads, you can use load cell types that can be integrated with other systems. What are the Pros of Kobastar Products? Kobastar products are produced with high quality materials and advanced technological equipment. Load cells to be used in the food and catering industry are made of stainless steel. Systems manufactured by Kobastar are suitable for use in different climates. It can work between -10 and +40 degrees without any problems. Equipped with resistant cables that are protected against external factors. It can measure for a long time without any damage. All load cells are calibrated and measured before being put on the market. Turkey's Leading Weighing Company Kobastar Weighing Systems Turkey's Leading Weighing Company Discover our stock-delivered standard products and special productions for your industrial weighing applications, add value to your weighing systems with KOBASTAR quality. Different models from 1 Kg to 500 Ton capacity for your weighing and force measurement applications. Indicators and controllers with OIML R76 and European type approval certificates. Truck scales in different capacities from 20tons to 150 tons. Portable axle scales, Static and Dynamic weighing. Heavy-duty and Portable Scales for Industrial and Commercial weighing applications. Dynamometer, Force Meter and Load Shackles. Weighing Systems for Construction Machinery, Wheel Loaders, Barrel Handling, Forklift, Pallet Truck. Crane Scales from 300 Kg to 50 Ton capacity are at Kobastar. Checkweighers, Belt scales, Liquid filling systems, Bagging Scales… External displays, Load Cell cables and collection boxes, Printers and more…
