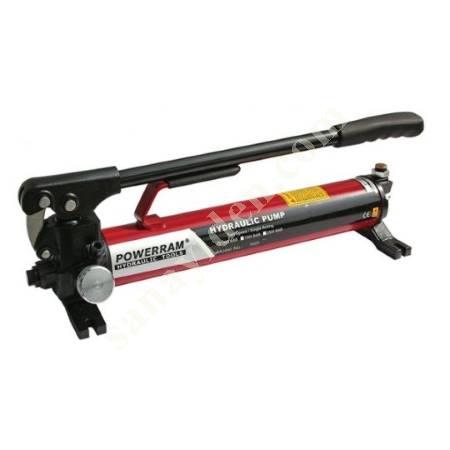

P90 Series 700 Bar Hydraulic Hand Pump – Steel 700 – 1000 Bar Hydraulic hand pump with steel tank Single-acting and double-speed automatic flow pump type Pre-filling is fast with its two-stage piston P904D model has a double-acting hydraulic system Built-in safety valve provides maximum work safety Made of steel, heavy-duty solid construction Possibility of portable use thanks to the carrying handle Minimum arm force at high pressure (35kg @max) Manometer optionally available (Ø100 – Ø63 mm) 2-year warranty, Powerram brand, origin Taiwan Service, calibration and service in Turkey spare parts support Get the Best Offer 700 Bar Hydraulic Hand Pump P90 Series hydraulic hand pump is designed considering the toughest working conditions. Hydraulic hand pumps made of all steel do not require maintenance for years even under heavy work conditions. 700 bar hydraulic hand pumps are tested at maximum working pressure and are shipped oil-filled. Product Code Working Pressure (Bar) Oil Capacity (L) Flow at Each Press (cm3) Hose Weight # 1st Stage 2nd Stage Tank Usable 1st Stage 2nd Stage Connection kg P901 20 700 0.45 0.30 19.4 1 .2 3/8” NPT 6.5 P902 20 700 0.85 0.75 19.4 2.8 3/8” NPT 7.8 P903 20 700 1.60 1.4 19.4 2.8 3/ 8” NPT 10 P904 27.5 700 2.50 2.2 39.5 2.8 3/8” NPT 13.5 P904D 27.5 700 2.50 2.2 35.6 2.8 3/8” NPT 15 P905 20 1000 0.85 0.75 19.4 1.2 3/8” NPT 7.8 Item Code Dimensions (mm) # A B C D E F G J K P901 447 369.5 140 163 164 48.5 45 112 282 P902 560 530 140 167 164 48.5 45 112 442 P903 633 597.5 140 170 164 48.5 36.5 122 510 P904 633 578 140 208 195 55 46 121 502 P904D* 633 609 140 208 195 38 47 121 502 P905** 560 530 140 167 164 48.5 45 112 442 *P904D has double acting hydraulic system. **P905 maximum working pressure is 1000 bar. Hydraulic Hand Pump - P901 700 Bar Hydraulic Jack Set Powerram brand hydraulic hand pumps are generally used with high tonnage hydraulic jacks. When it is desired to create a jack set, a hydraulic hand pump should be selected according to the oil volume of the cylinder. The 700 bar hose, coupling and analog manometer, which provides a high level of safety, are also the elements that complete the set. Steel Body Hydraulic Hand Pump P90 Series hand pumps are made entirely of steel. These pumps, which are heavier than aluminum pumps, are generally preferred in construction site environments where heavy works are in question. It is easy to carry and portable thanks to its built-in carrying handle. Maximum Occupational Safety 700 bar hand pumps are equipped with an internal pressure relief valve. This valve protects both the pump and the user against overload. Having reached the maximum working pressure, the pump automatically activates the safety valve and evacuates the oil path back to the tank. P90 hand pumps never rise above their maximum working pressure. Occupational and worker safety is ensured at the maximum level. Hydraulic Hand Pump - P902 Hydraulic Hand Pump - P904 P905 - 1000 Bar Hydraulic Hand Pump Ideal for Controlled Operation Hydraulic hand pumps with double speed and two-stage hydraulic system perform pre-filling quickly up to 20 bar in the 1st stage. As the pressure increases, that is, as it enters the load, the flow of oil decreases. Because it is necessary to work in a controlled manner with high pressure hydraulic equipment. Wide Choice of Accessories Hydraulic hand pumps are shipped as standard without the manometer. It is available with Ø100 or Ø63 mm manometer according to the needs. You can contact us for accessories such as manometer suitable for working pressure, hydraulic hose and hydraulic coupling. Also available are double and quadruple distributor blocks for specific applications.
