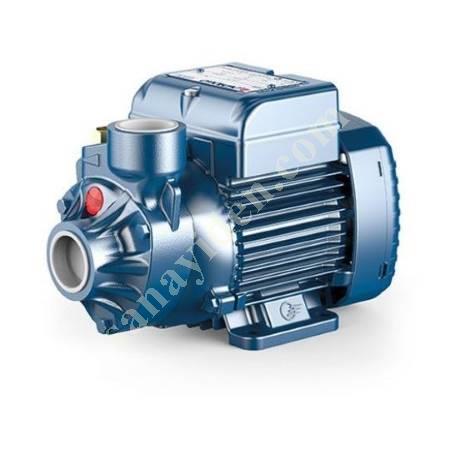

PEDROLLO PKM 100 PREFERICAL PUMP SINGLEPHASE (220V)

Pedrollo PKm 100 Primary Pump They are used in booster groups, Industrial machines, Vineyard and garden irrigation. Suction depth 8 m. Maximum bar pressure 10 Bar Pump Motor Power: It works with 1.5 Hp 220 volts (household electricity). Input/Output: 1"(25mm) Maximum delivery height 85 meters vertically and 850 meters horizontally Amount of Tons per hour m³/h Vertical Discharge Distance Horizontal Discharge Distance Horizontal 0 85 m 850 m 0.3 80 m 800 m 0.9 70 m 700 m 1.5 60 m 600 m 2.1 50 m 500 m 2.4 45 m 450 m 3.0 35 m 350 m 3.3 30 m 300 m Pump Type Power HP Inlet Outlet m³/h 0 0.3 0.9 1.5 2.1 2.4 3.0 3.3 PKm 100 1.5 1" 1" H (meter) 85 80 70 60 50 45 35 30 Pump Type Connection Dimension mm PKm 100 DN1 DN2 a f h h1 h2 h3 i m n n1 w s 1" 1" 55 350 212 80 94 174 20 100 164 125 85 9 1- Pump Body Casting 2- Motor Cover Aluminum (Bronze Plated) 3- Fan Bronze 4- Motor shaft Stainless Steel 5- Mechanical Seal 6- Bearing 7- Capacitor 8- Motor Installation Materials If your pump is sucking from the same level or higher code, you must use a check valve in the suction line. check valve should be used Click here to buy check valve If your pump is sucking below its level, that is, from negative code, do not make air A flap must be used for the flow. Click to buy a valve. You can purchase a strainer to prevent your pump from being damaged by the impurities formed in the water at the time of suction. Click here to buy a strainer. Click here to take a look at the other fasteners you will definitely need. HP : 1.5 HP kW : 1.1 kW Voltage : 220 Volt (Monophase) Max. Flow rate m3/h: 0-5 m3/h Max. Height mSS: 76-100 mss Inlet Size: 1" - 25 mm Outlet Size: 1" - 25 mm Suction Depth: 8 Meters
