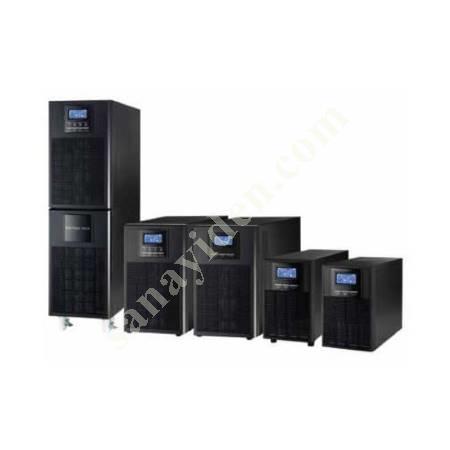

Teos 100(1-10KVA) GENERAL FEATURES TECHNICAL SPECIFICATIONS Real double conversion Microprocessor controlled increased reliability Input power factor correction Output power factor (PF) 0.9 Wide input voltage range Ability to work as a converter ECO Mode for energy saving (only for 1-3kVA models) Generator Adjustable number of batteries (6-10kVA models only) Adjustable charging current (1A ~ 6A) via LCD or software (6/10kVA only) Emergency shutdown (EPO) only available for 6/10kVA User friendly front panel MODEL TEOS 1000 TEOS 2000 TEOS 3000 TEOS 106 TEOS 110 Power (VA/W) 1000VA/900W 2000VA/1800W 3000VA/2700W 6000VA/5400W 10000VA/9000W INPUT Voltage range 60-150 VAC or 120-300 VAC (at 50% load) 90- 140 VAC or 180-280 VAC (at 100% load) Frequency range 40-70Hz 46~54 Hz or 56~64 Hz Power factor ≥ 0.99 @ Rated voltage (100% load) OUTPUT Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC 208/220/230/240VAC Voltage tolerance ±1% Frequency range (synchronized range) 47~ 53 Hz or 57 ~ 63 Hz 46~54 Hz or 56~64 Hz Frequency range (battery mode) 50 Hz or 60Hz ± 0.5% 50 Hz or 60Hz ± 0.1 Hz Crest factor 3 :1 Voltage THD < 3% @ linear load < 3% @ linear load < 6% non-linear load < 5% non-linear load Waveform Sine wave EFFICIENCY AC mode > 88% > 89% > 90% > 92% > 93% Battery mode > 83% > 85% > 88% > 90% > 91% BATTERY Number of batteries 2 4 6 16 – 20 16 – 20 Battery type 12V / 9AH Typical charging time reaches 90% capacity in 4 hours reaches 90% capacity in 9 hours Charging current 1A 1A/2A (adjustable) DISPLAY LCD Load level, Battery level, AC mode, Battery mode, Bypass mode and Fault indicators BUZZER Battery mode Beeps every 4 seconds Battery low Beeps every second Error Continuous beeper Overload capacity Per second 2 beeps GENERAL Relative humidity 20-90% RH @ 0-40°C (non-condensing) 0-95% RH @ 0-40°C (non-condensing) Noise level < 50dBA @ 1 meter < 55dBA @ 1 meter < 58dBA @ 1 meter Tower case (WxDxH) 145x282x220 145x397x220 190x421x318 190x369x688 190x442x688 INTERFACE USB Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix and MAC Optional SNMP
