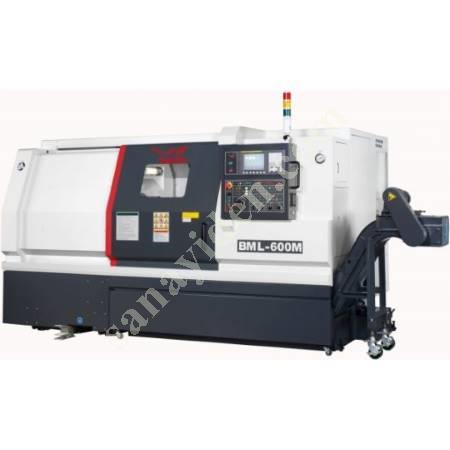

Product Description YIDA PRECISION MACHINERY ( YDPM ) BML-600M WITH BOX SLIDE / ML-600M LINEAR BEARING SLIDES 10 INCH AND 12 INCH CRANK LATHES Unit BML-600S ML-600S BML-600M ML-600M BML-600L On the TELE-600L turning diameter mm Ø600 Turning diameter on transverse support mm Ø450 Maximum turning diameter mm Ø420 [Ø360 on C-axis models] Maximum turning length (with 10" chuck) mm 540 780 1280 Maximum turning length (with 12" chuck) mm - 760 1260 Chuck diameter inch 10" 10" / 12" 10" / 12" Machining diameter from bar (with 10" chuck) mm Ø75 Machining diameter from bar (with 12" chuck) mm Ø91 AXIS MOVEMENTS X-axis travel mm 230 (210+20) [ 246 (180+66) on C-axis models] Z-axis travel (with 10 inch chuck) 590 830 1330 Z-axis travel (with 12 inch chuck) mm - 820 1320 SPINDLE Spindle speed (with 10 inch chuck) rpm 3500 3500 Spindle speed (with 12" chuck) rpm - 2500 Spindle face JIS JIS A2-8 Spindle bore diameter (with 10" chuck) m m Ø86 Ø86 Spindle bore diameter (with 12" chuck) mm - Ø105 Spindle front bearing inside diameter (with 10" chuck) mm Ø120 Ø120 Spindle front bearing inside diameter (with 12" chuck) mm - Ø130 C-AXIS MODELS Live tool maximum speed rpm 50~4000 TURRET Number of turret stations (Standard) Number 10 Number of Turret stations (C-axis models) Number 12 Outer diameter bar shank size mm 25x25 Hole bar shank size mm Ø40 SLIDES, AXIS SPEEDS Record- slide type BML: Box slide / ML: Linear bearing slide X/Z axes rapid traverse speeds mt/min BML: X:16 Z:20 ML:X:30 Z:30 FOOTtail Tailstock Type Programmable Pinole diameter mm Ø85 Pinole movement mm 120 Pinol inner taper Mors MT-5 Tailstock movement mm 367 720 1090 PRECISIONS Positioning accuracy mm ± 0.005 Repetition accuracy mm ± 0.004 MOTORS Spindle motor power (30 min/continuous) kW 18.5/15 (Fanuc Alfa 30iP high torque) with motor) X/Z axes servo motor power kW 3.0 kW (Fanuc Alfa 12/3000 with i motor) Live tool motor in C-axis models kW 5,5/3.7 (with Fanuc Alfa 3 motor) Electric power requirement kVA 26 DIMENSIONS Floor area (with chip conveyor) cm 381x209 404x209 459x213 Height cm 185 185 190 Net weight (with chip conveyor) kg 5430 6050 7000 Gross weight (with chip conveyor) kg 5730 6800 7450 Desk type : Inclined bench (C-axis models with gearbox models are available)
