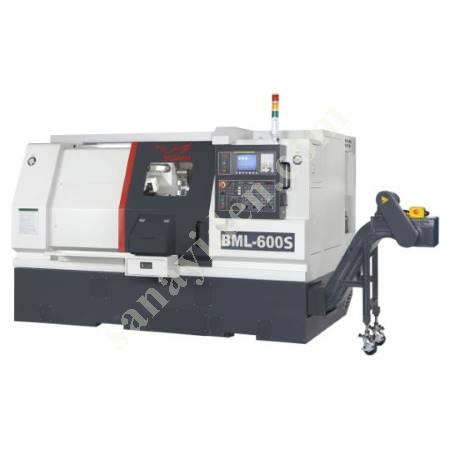

YIDA PRECISION MACHINERY ( YDPM ) BML-600S WITH BOX SLIDE / ML-600S LINEAR BEARING SLIDING WITH 10 INCH CHURCH CNC LATHES Unit BML-600S ML-600S BML-600M ML-600M BML-600L ML-600L Transverse diameter mm Turning on the bench 600 turning diameter on support mm Ø450 Maximum turning diameter mm Ø420 [Ø360 on C-axis models] Maximum turning length (with 10" chuck) mm 540 780 1280 Maximum turning length (with 12" chuck) mm - 760 1260 Chuck size inch 10" 10 " / 12" 10" / 12" Machining diameter from bar (with 10" chuck) mm Ø75 Machining diameter from bar (with 12" chuck) mm Ø91 AXIS MOVEMENT X-axis travel mm 230 (210+20) [246 on C-axis models (180+66)] Z-axis travel (with 10" chuck) 590 830 1330 Z-axis travel (with 12" chuck) mm - 820 1320 SPINDLE Spindle speed (with 10" chuck) rpm 3500 3500 Spindle speed (with 12" chuck) rpm - 2500 Spindle face JIS JIS A2-8 Spindle bore diameter (with 10" chuck) mm Ø86 Ø86 Spindle bore diameter (with 12" chuck) mm - Ø105 Spindle front bearing inner diameter (with 10" chuck) mm Ø120 Ø120 Spindle front bearing inner diameter (with 12" chuck) mm - Ø130 C-AXIS MODELS Live tool maximum speed d /min 50~4000 TURRET Number of Turret stations (Standard) Quantity 10 Number of Turret stations (C-axis models) Quantity 12 Outer diameter bar shank size mm 25x25 Hole bar shank size mm Ø40 SLIDES, AXIS SPEEDS Registration-slide type BML: Box-slide / ML: X/Z axes with linear bearing slides, rapid traverse speeds mt/min BML: X:16 Z:20 ML:X:30 Z:30 AGAINSTITCH Tailstock type Programmable Pinole diameter mm Ø85 Pinole movement mm 120 Pinole inner taper Morse MT-5 Tailstock travel mm 367 720 1090 PRECISIONS Positioning accuracy mm ± 0.005 Repetition accuracy mm ± 0.004 MOTORS Spindle motor power (30 min/continuous) kW 18.5/15 (with Fanuc Alfa 30iP high torque motor) X/Z axes servo motor power kW 3.0 kW (with Fanuc Alfa 12/3000i motor) C-axis m live tool motor in models kW 5,5/3.7 (with Fanuc Alfa 3 motor) Electric power requirement kVA 26 DIMENSIONS Floor area (with chip conveyor) cm 381x209 404x209 459x213 Height cm 185 185 190 Net weight (with chip conveyor) kg 5430 6050 7000 Gross weight (with chip conveyor) kg 5730 6800 7450 Desk type : Inclined bench (C-axis models are available with gearbox)
