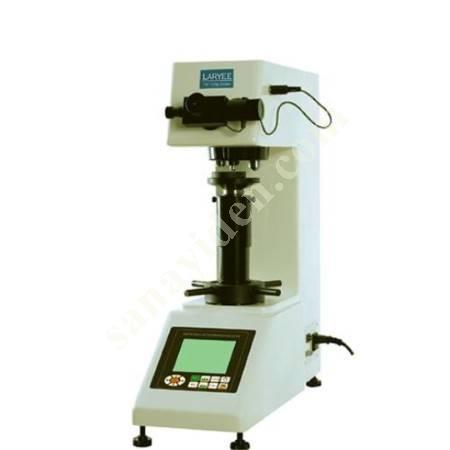

VİCKERS SERTLİK ÖLÇÜM CİHAZLARI

Vickers Sertlik Ölçüm Cihazları   Model HVM-5 HVM-10 HVM-30 HVM-50 Test load(N) 2.942/4.903/9.807 19.61/24.52/ 29.42/49.03 2.942/4.903/9.807 19.61/24.52/29.42 49.03/98.07 4.903/9.807/19.61/ 24.52/29.42/49.03 98.07/196.1/294.2 9.807/19.61/24.52 29.42/49.03/98.07 196.1/294.2/490.3 Test load(Kgf) 0.3 / 0.5/1 /2 / 2.5 /3 / 5 0.3 /0.5 /1 /2/2.5/ 3 / 5 / 10 0.5/ 1 / 2 / 2.5 3 / 5 /10 / 20 /30 1/ 2 / 2.5 / 3 5 / 10 / 20 /30 /50 Carriage control Automatic (loading/dwell-time/unloading) Load holding time 0~60 seconds Magnification of microscope 100X, 400X 100X, 400X 100X,200X 100X, 200X Microscope Min. measuring unit 0.0625um(400X)  0.125um(200X)  0.250um(100X) Testing range 1HV~2967HV Lens/indenter switch HVS series with hand Turret, HVM series with motorized turret Hardness Scales HVM whith function of convert HB,HRC,HRA,HRB,HRN,HRT, Dimension of XY table 100X100mm No Stroke of XY table 25X25mm No Max. height of specimen 170mm Max. depth of specimen 130mm Light source Cold Light Source Power 1P~110V/220V, 50/60HZ Objective 10X, 20X and 40X can be selected according to user’s requirement Main Standard accessories XY test table(HVS-5,HVS-10) Large test table;  “V” shape test table; 10X Digital micro eyepiece ; Lever ; Adjustable screw; Vickers hardness block, RS232 Cable, Mini Printer Option accessories HVS series can choose Motorized Turret(HVS-Z); HVS, HVM can add CCD Video system(HV-CCD), HVM series can add HK hardness test Dimension 535mmX225mmX630mm Weight Gross weight:60KG;  Net weight: 50KG
