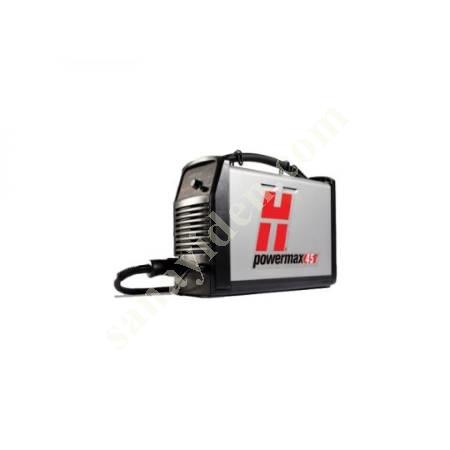

POWERMAX 45 XP PLASMA UNIT

Powermax 45 XP General Information It is a Plasma Cutting Unit with Inverter Technology. Precise Amperage Adjustable with Feedback Electronic Technology and the amperage is not affected by ambient effects. Thanks to the latest technology and new generation Torch structure, it has a longer life consumable consumption compared to its competitors. Excellent results can be achieved in both thin material and thick material. Mains Voltage 230 V/50-60 HZ The power drawn from the mains is 5.95 KW and the amperage drawn is 30 Amperes. Consumption Rates are quite low. Output Voltage is 132 VDC and 45 Amps. The On-Off rate is 100% at 32 Amps and 50% at 45 Amps. Open Circuit Voltage is Maximum 275 VDC. It measures 426 x 172 x 348 mm and weighs 15.80 KG. It only works with dry air or nitrogen. Capacity Thickness Cut Speeds Recommended 12 mm (1/2") 500 mm/min (20 ipm) 19 mm (3/4") 250 mm/min (10 ipm) Manual Cut 25 mm (1") 125 mm/min (5 ipm) Machine Blasting 12 mm (1/2") Usage Areas Hvac Line Red Line Technical Specification Maximum * ipm /min Steel 10 GA 3 45 175 4445 1/4 6 45 75 1905 3 / 8 10 45 40 1016 1 / 2 12 45 25 635 3 / 4 19 45 10 254 1 25 45 5 127 10GA 3 45 150 3810 1 / 4 6 45 55 1397 3 / 8 10 45 32 813 1 / 2 12 45 18 457 3 / 4 19 45 9 229 10 GA 3 45 280 7112 1/4 6 45 100 2540 3 / 8 10 45 42 1067 1/2 12 45 25 635 3 / 4 19 45 10 254
