KR BM 600 AUTOMATIC PROFILE DYEING MACHINE

KR BM 600 Profile Painting Machine

KR BM 600 Wood Profile Painting Machine; It is a new generation profile painting machine that distinguishes itself from its competitors with its large cabin volume, economical paint recovery system, and the ability to integrate with automatic loading and unloading systems.



STANDARD EQUIPMENT

Paint Recovery Conveyor Belt

KR BM 600 paint recovery conveyor belt, which provides material savings of 20% to 30%, is offered as standard.

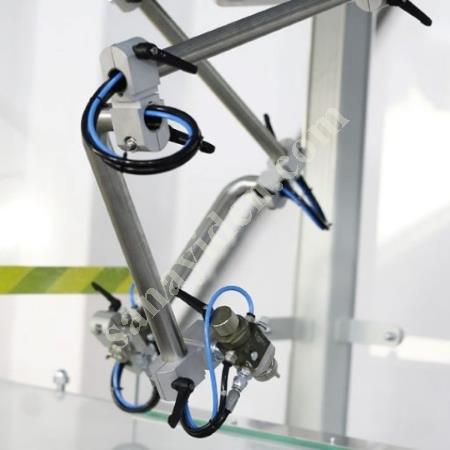

Pump Gun

KR BM 600 Plastic Profile Painting Machine 1 diaphragm pump and 4 low-pressure automatic spray paint guns with adjustable positions are offered as standard.

Cassette Exhaust Filter

The KR BM 600 Profile Painting Machine is offered as standard with a removable cassette filter that facilitates paint spray gun adjustment and cabin interior cleaning.



OPTIONAL EQUIPMENT

High Pressure Pumps and Guns

The infrastructure of the KR BM 600 Profile Painting Machine is suitable for optional high-pressure paint spray pump and spray paint spray gun. Optionally, 4, 6, 8 pieces can be added to the machine. gun can be attached.



Automatic Loading and Unloading

Optionally, an automatic loading and unloading unit can be added to the KR BM 600 Skirting Board Painting Machine.

Aqueous Filtration


KR BM 600 Profile Painting Machine can optionally be produced with an aqueous filtration system. This system both increases product quality and protects the environment by reducing emission values.



IOT

In this system, operating and malfunction data of all KAMA Machines you own are collected instantly and made meaningful for you to use. In this way, you can monitor the operating status of your machines in real time and view any malfunctions that have occurred. You can examine in detail which user did how much work, the malfunctions that occurred during this work, with which parameters they worked, the total working time and production volume of your machine, and historical work reports, and you can get special reports by filtering with the parameters you want. You can also keep track of your work smoothly by setting various information alarms.



REMOTE TECHNICAL SERVICE SUPPORT WITH AUGMENTED REALITY

With the Vsight Remote application, where we offer our remote technical service much faster and more practically, we largely prevent any interruptions that may occur during the use of our machines. We enable the machine operator to instantly connect to the technical service representative at KAMA headquarters with a smartphone, tablet or smart glasses, and to provide the necessary correct intervention to the malfunction detected during the audio and video call, using live image markings and voice commands, within seconds.



TECHNICIAL SPECIFICATIONS
EXTERNAL DIMENSIONS (Gen.X High.X Length) 2970

WEIGHT 1800 kg
ELECTRICITY CONSUMPTION 7.75 kW/hour

CONVEYOR WORKING SPEED (MAX) 25 m/min.

PART TO BE PAINTED DIMENSION (Gen.X High.X Length) (MAX) 350 x 250 x INFINITY mm

DRY VENTILATION FLOW (MAX) 12000 m^3/hour

SUPPLY AIR PRESSURE 6 Bar

NUMBER OF PAINT GUNS: 4 Pcs

EFFECTIVE BAND WIDTH 500 mm
